Breaking the Bottleneck in Modern Manufacturing: Advanced Packaging for Ultra-Thin and Surface-Sensitive Components

As the consumer electronics and semiconductor industries push for smaller, lighter, and thinner devices, manufacturers face a severe packaging bottleneck. Components such as micro-shields, ultra-thin contacts, and coated lenses are incredibly vulnerable. Traditional mechanical taping processes often result in crushed parts, scratched coatings, or bent frames, leading to skyrocketing defect rates.

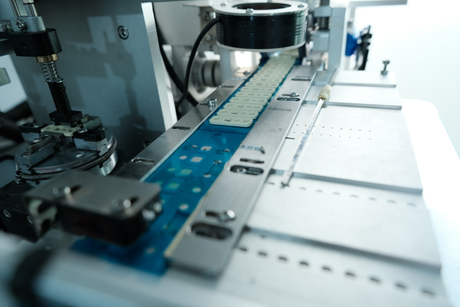

To address the specific needs of these high-end industries, we offer the Micro-Tacky Carrier Tape Packaging Machine. It is designed from the ground up to handle the most challenging materials, offering a reliable No-Deformation Packaging Solution that protects your bottom line and your brand reputation.

H2: Mastering Ultra-Thin and Precision Metal Parts

For factories dealing with delicate hardware, standard carrier tape pockets are often too rigid, causing parts to bounce or deform during sealing.

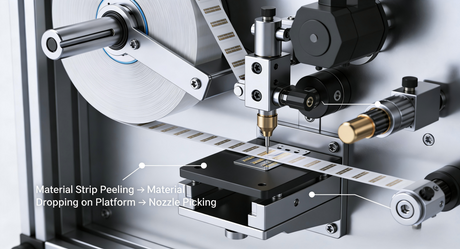

Our machine replaces this physical stress with micro-tacky tape technology. By using a low-adhesion surface to secure the product, it completely eliminates downward mechanical pressure. This makes it the absolute industry standard for Precision Metal Parts Packaging. Whether you are handling 0.1mm thickness copper strips or complex micro-stamped parts, the system ensures zero physical distortion, making it an indispensable asset for Thin Stamped Components Packaging.

H2: Conquering Complex Surfaces with AI Deep Learning

Surface-sensitive products, especially those with reflective coatings or polished finishes, are notoriously difficult to inspect using traditional rule-based cameras. A slight change in lighting can trigger a false reject.

To overcome this, the system is equipped with AI Deep Learning Surface Inspection.

• Adaptive Algorithms: The AI continuously learns from both qualified and defective samples, adapting to subtle product variations and complex surface reflections.

• Micro-Defect Detection: It accurately identifies genuine scratches, contamination, and stains while ignoring acceptable material variations.

• Stable Long-Term Yield: This ensures that your inspection reliability remains consistent, even during continuous, high-volume production runs.

H2: The Future of Electronic Component Handling

In the electronics sector, an aesthetic flaw is often treated as a functional failure by end-users. Maintaining a pristine appearance is critical.

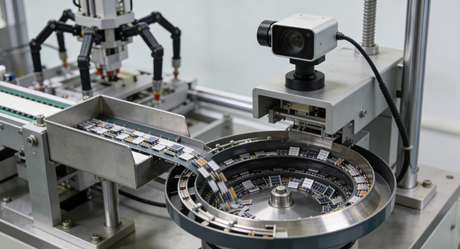

By seamlessly integrating orderly vibratory feeding, AI pre-inspection, and damage-free placement, this machine elevates the standard for Electronic Component Adhesive Packaging. It guarantees that surface-sensitive or thin products are securely attached to the carrier tape without suffering any surface damage, ensuring your products arrive at the downstream assembly line in factory-perfect condition.
